SOLD: 2023 Giga Vitesse GV3201 CFS Loader Wagon
Tare weight 8,600 kg, 30 m3 capacity (DIN11741)
Exact-Cut Knife Bank, 45 knives giving a theoretical cut length of 35mm
Standard Steel Tyne pickup reel
CFS – patented Continuous Flow System (Increased throughput, lower power requirement)
Wooden floor
Tandem axle with spring suspension and rear passive steering, Automatic steering lock in reverse
Combined air and hydraulic brakes, Mudguards
Vredestein Flotation Trac 710/50R26.5 tyres
ISOBUS controls, including 5” Terminal
Size 3. ¾” hydraulic couplings for load sensing connection
Low drawbar with ring hitch, 3ton coupling load
Walterscheid PTO shaft, 1 3/8” 6 spline, one side wide angle. Cam clutch 2000Nm
LED Trailer lighting, Beacon, Outline Marker Lights, 2nd Working Light, LED, rear left on mudguard
Additional guide wheels under Pickup
Electric connection for silage pump
POA - Variety of Finance Options available

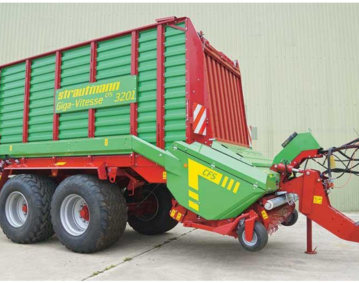

2023 Giga Vitesse GV3201 CFS Loader Wagon
Tare weight 8,600 kg, 30 m3 capacity (DIN11741)
Exact-Cut Knife Bank, 45 knives giving a theoretical cut length of 35mm
New Flex-Load pickup system with plastic tynes
CFS – patented Continuous Flow System (Increased throughput, lower power requirement)
Wooden floor
Tandem axle with spring suspension and rear passive steering, Automatic steering lock in reverse
Combined air and hydraulic brakes
Vredestein Flotation Trac 710/50R26.5 tyres
ISOBUS controls, including 5” Terminal
Size 3. ¾” hydraulic couplings for load sensing connection
Low drawbar with ring hitch, 3ton coupling load
Walterscheid PTO shaft, 1 3/8” 6 spline, one side wide angle. Cam clutch 2000Nm
LED Trailer lighting, Beacon, Outline Marker Lights, 2nd Working Light, LED, rear left on mudguard
Additional guide wheels under Pickup
Electric connection for silage pump
POA - Variety of Finance Options available
2023 Giga Vitesse GV3601 CFS Loader Wagon
34m3 capacity (DIN11741), at medium compression 64.6m3 capacity
Steel floor, 2 sets heavy-duty floor chains and scrapers, 2 hydraulic motors, one each side
Standard GV01 Steel Tyne Pick-up Reel, 2.0m wide, with additional guide wheels under pick-up
Front gate hydraulically hinged via direct connection to tractor
Exact Cut Knife System, 45 knives giving a theoretical cut length of 35mm
Individual knife protection, with automatic reset when crop load decreases
Tandem bogie reinforced chassis FAD axles with spring suspension and rear passive steering
40km/h, Wheel Track 2100mm, Wheel Base 1570mm, Brakes 412x160, Axle Load 18t
Combined air and hydraulic brakes for reinforced FAD chassis and axles, Tyres R26.5
Automatic steering lock in reverse
Wheels - Vredestein Flotation Trac 710/50R26.5 170D 10-hole stud rim
Mudguards for TD-Chassis FAD
Low drawbar with ring tow hitch, 3 T coupling load
Size 3, ¾” hydraulic couplings for load sensing connection
ISOBUS controls with 5”Terminal
PTO shaft 1 3/8” 6 spline with one side wide angle and 2000Nm Cam Clutch
Electric connection for silage inoculants pump
LED Trailer lighting, Beacon Light, Outline marker lights
Tare weight 9,000 kg
Dimensions - Overall L 9.42m W 2.81m H 4.00m - Load Space L 6.55m W 2.25m H 2.30m
POA - Variety of Finance Options available

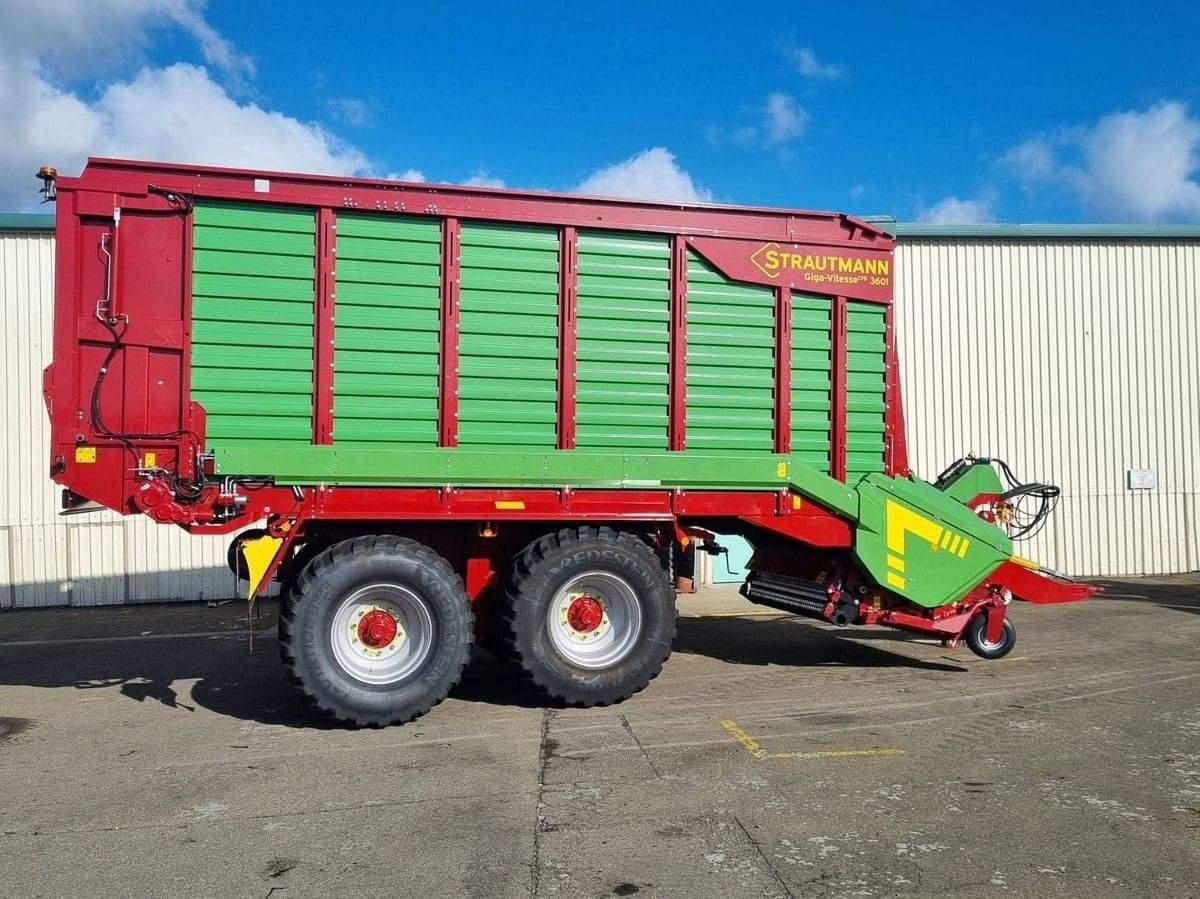

2023 Giga Vitesse GV3601 CFS Loader Wagon
34m3 capacity (DIN11741), at medium compression 64.6m3 capacity
Wooden floor, 2 sets heavy-duty floor chains and scrapers, 2 hydraulic motors, one each side
Standard GV01 Steel Tyne Pick-up Reel, 2.0m wide, with additional guide wheels under pick-up
Front gate hydraulically hinged via direct connection to tractor
Exact Cut Knife System, 45 knives giving a theoretical cut length of 35mm
Individual knife protection, with automatic reset when crop load decreases
Tandem bogie reinforced chassis FAD axles with spring suspension and rear passive steering
40km/h, Wheel Track 2100mm, Wheel Base 1570mm, Brakes 412x160, Axle Load 18t
Combined air and hydraulic brakes for reinforced FAD chassis and axles, Tyres R26.5
Automatic steering lock in reverse
Wheels - Vredestein Flotation Trac 710/50R26.5 170D 10-hole stud rim
Mudguards for TD-Chassis FAD
Low drawbar with ring tow hitch, 3 T coupling load
Size 3, ¾” hydraulic couplings for load sensing connection
ISOBUS controls with 5”Terminal
PTO shaft 1 3/8” 6 spline with one side wide angle and 2000Nm Cam Clutch
Electric connection for silage inoculants pump
LED Trailer lighting, Beacon Light, Outline marker lights
Tare weight 9,000 kg
Dimensions - Overall L 9.42m W 2.81m H 4.00m - Load Space L 6.55m W 2.25m H 2.30m
POA - Variety of Finance Options available

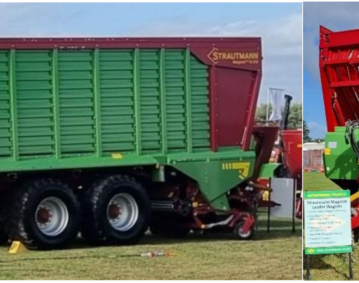

2023 Giga Vitesse GV4001 CFS Loader Wagon
38m3 capacity (DIN11741), at medium compression 72.2m3 capacity
Steel floor, 2 sets heavy-duty floor chains and scrapers, 2 hydraulic motors, one each side
Standard GV01 Steel Tyne Pick-up Reel, 2.0m wide, with additional guide wheels under pick-up
Front gate hydraulically hinged for following Forage Harvester via direct connection to tractor
Exact Cut Knife System, 45 knives giving a theoretical cut length of 35mm
Individual knife protection, with automatic reset when crop load decreases
Tandem bogie reinforced chassis FAD axles with spring suspension and rear passive steering
40km/h, Wheel Track 2100mm, Wheel Base 1570mm, Brakes 412x160, Axle Load 18t
Combined air and hydraulic brakes for reinforced FAD chassis and axles, Tyres R26.5
Automatic steering lock in reverse, Mudguards for TD-Chassis FAD/BPW
Wheels - Vredestein Flotation Trac 710/50R26.5 170D 10-hole stud rim
Low drawbar with ring tow hitch, 3 T coupling load
Size 3, ¾” hydraulic couplings for load sensing connection
ISOBUS controls with 5”Terminal
PTO shaft 1 3/8” 6 spline with one side wide angle and 2000Nm Cam Clutch
Electric connection for silage inoculants pump
LED Trailer lighting, Beacon Light, Outline marker lights, Two Work Lights, Rear Left mudguard & Loading space
Tare weight 9,400 kg, Dimensions -Overall L 10.22m W 2.81m H 4.00m -Load Space L 7.32m W 2.25m H 2.30m
Power requirements – Minimum 160Hp/118KW
POA - Variety of Finance Options available

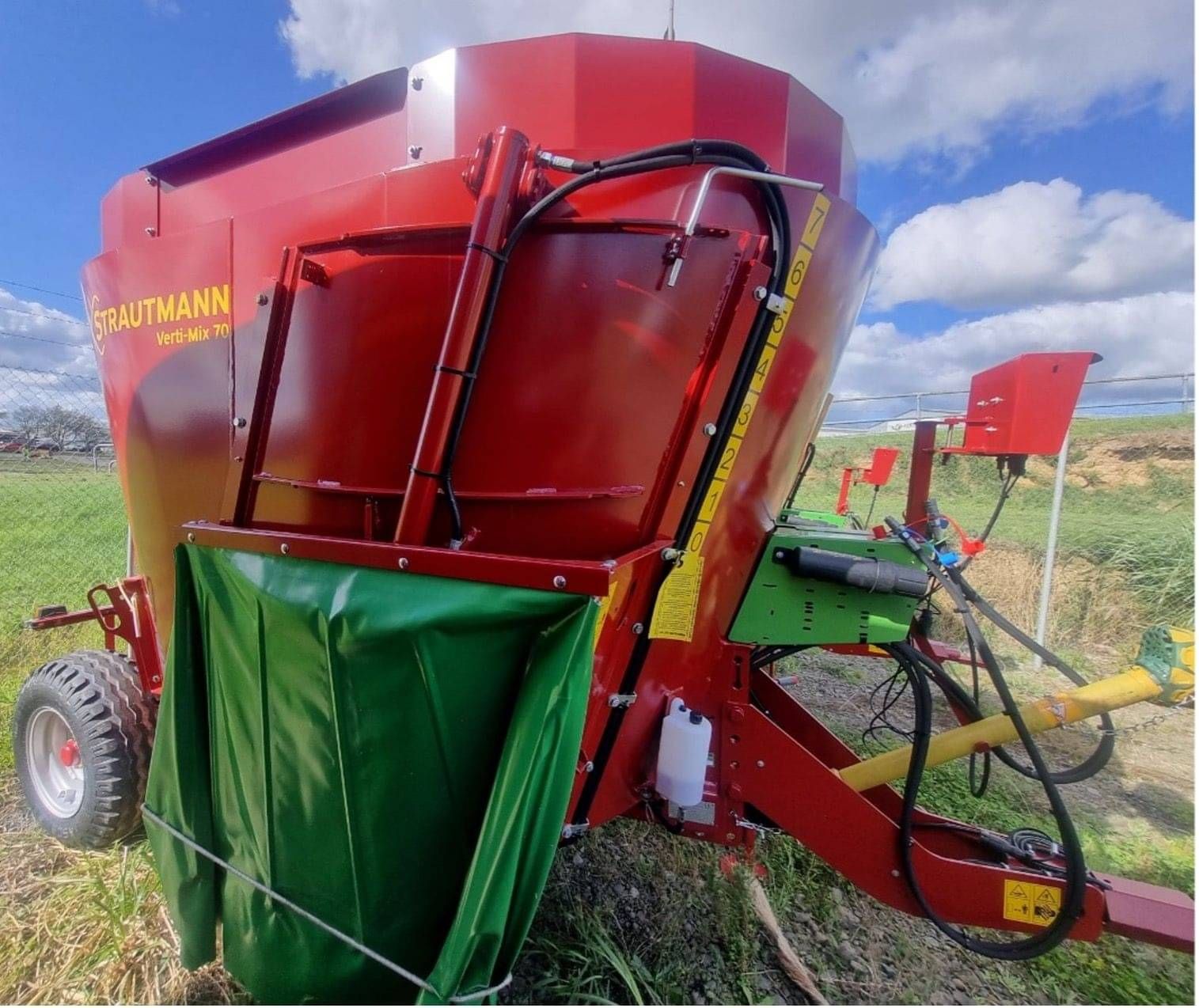

2024 Strautmann VM70 FRS RLS BK Mixer Wagon
Front Right Shute & Rear Left Shute Discharge Doors & Assemblies
Direct hydraulic connection to tractor with 2 double acting functions required
Single Axle, 6km/hr with hydraulic brakes, Direct Connection to tractor
Tyres 10.0/75-15.3 (10PR) 6 hole stud
Low drawbar with 50mm Ring Hitch towing eye
Mechanical jack stand with quick adjustment
Single Standard 15mm Vario2 stepped mixing auger, with INNODUR Stainless Steel wear strips on auger edges
Bale Knife Cutter set (1 x short, 4 x Long, 1 x Bale, Knives with angled bracket on top knife)
Standard mechanical counter knives
33.5 rpm T-Coaxial auger drive gearbox
Standard Programmable PTM HL 50 Scales
Walterscheid PTO shaft with shear bolt coupling 1600Nm, one side wide angle, 1 3/8” 6 spline
With 250mm Extension Ring for 7.0m3 capacity
Standard Trailer Lights
(Other Optional Extras available, please enquire for pricing.)
POA - Variety of Finance Options available

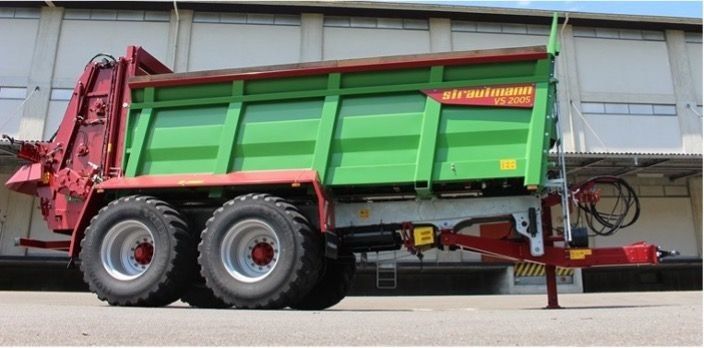

2025 VS2005 Universal Muck Spreader
Universal Spreader with Scales
Twin Horizontal Beaters plus
2 Disc Wide Angle Spreading Unit with cam clutch and revolution control (with cardan shaft drive)
Hydraulic Slurry Door
Boundary spread limiter right hand side, hydraulically operated via ISOBUS
Tandem bogie axle (BPW) with Electro-Hydraulic Active Steering, wheel track 2100mm, Brakes 410x120
Steering rod for active steering on right side with K50 Ball for tractor, Crash Protection for Steering Arm
Hydraulic Lifting Front Axle
Air brakes with ALB (Add Combination Air & Hydraulic Brake Kit, plus $1,750 + GST)
Tyres 710/50 R26.5 170D 10-hole stud BKT FL 630 Ultra
Electro-Hydraulic controls with ISOBUS Terminal 5” with Scales for Active Steering
Low Drawbar with mechanical Suspension, K80 ball hitch, 4t coupling load
2 speed mechanical jack winch
PTO Shaft with one side wide angle 6 spline 1 3/8”
Tare weight 8,200kg, 16m3 capacity, Length 8.64m, Width 2.81m, Height 3.57m, Loading Height 2.77m
Minimum Power Requirement 110KW/150HP
Hydraulic clutch with Load Sensing connection, size 3
Standard LED Trailer Lights, Beacon light plus 5x LED Working Lights (1x Loading space, 4x Spreading unit)
POA - Variety of Finances Options available

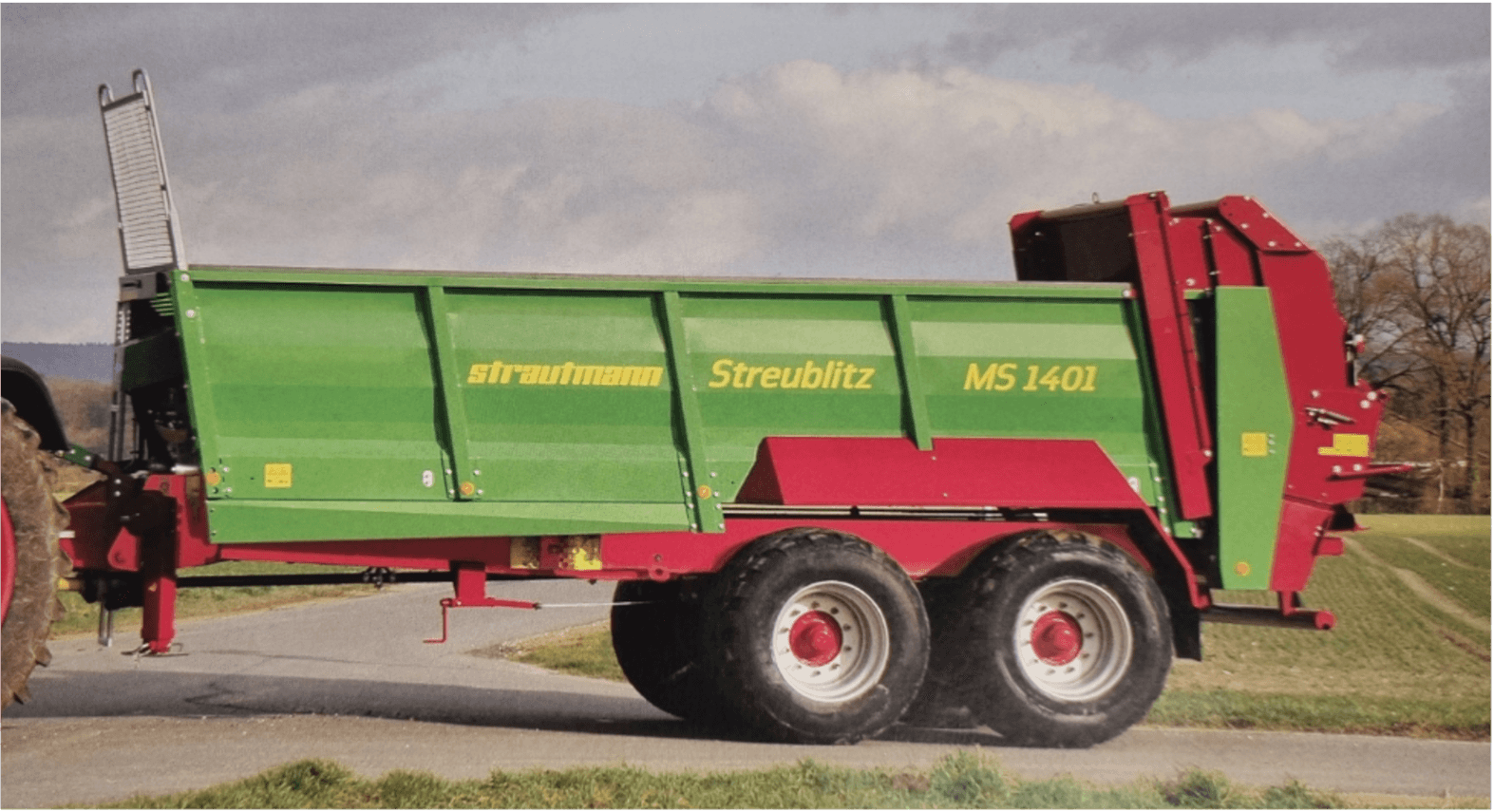

2025 Strautmann MS1401 Universal Spreader
Without Scales (Scales not available on MS Spreaders)
Twin Horizontal Beaters with chain drive plus
2 Disc Wide Angle Spreading Unit with cam clutch and revolution control, without Boundary Limiters
Hydraulic Slurry Door
Std Tandem axle (FAD) 40km/h, Wheel Base 1260mm, Wheel track 1950mm, Brakes 400x80, 10 wheel studs
Tyres 560/45 R22.5, 152D, 10-hole stud, BKT FL 630 Ultra
Hydraulic brakes, Wide Mudguards
Low Drawbar with turntable ring hitch, 3t coupling load. 2 speed mechanical jack winch
Hydraulic Control by direct connection to tractor
Moving floor chains hydraulically driven, 4x 13mm strong transport floor chains, Plastic Floor
PTO Shaft with one side wide angle 6 spline 1 3/8” and cam clutch 1650NM
Tare weight 5,300kg, Length 7.58m, Width 2.51m, Height 3.23m, Loading Height 2.36m, 11m3 capacity
Minimum Power Requirement 74KW/100HP
Other Options Available, please enquire.
POA - Variety of Finance Options available
Looking for second hand Strautmann machinery?
Our team prides themselves in refurbishing used Strautmann machinery, giving it a new lease on life. Check out the second hand machinery we have available below or contact Conor Hopkins for more information.
